HF120/60H

High power, heavy duty medical unit.
The preferred choice of the US military.

The HF120/60H complete with "High Burst" electronic function is capable of up to 120 kVDC. The input line voltage is within the worldwide range of 120V–240V(50/60Hz). The specifications meet the requirements of the U.S. military. It is compatible with all major DR digital systems. It is recommended for hospitals, mobile clinics, military field clinics and nursing homes.

Page Top

Model
HF120/60H portable x-ray unit
Max.output power
3.0kW
Line voltage
AC, single phase, 120-240V, 50/60Hz
Focal spot
1.2mm × 1.2mm
kV range
40kV-120kV (2kV step)
mA range
60mA(0.01-0.1sec),42mA(0.11-5.0sec)@40-50kV
50mA(0.01-0.1sec),35mA(0.11-5.0sec)@52-60kV
45mA(0.01-0.1sec),31.5mA(0.11-5.0sec)@62-70kV
38mA(0.01-0.1sec),26.6mA(0.11-5.0sec)@72-80kV
33mA(0.01-0.1sec),23.1mA(0.11-5.0sec)@82-90kV
30mA(0.01-0.1sec),21mA(0.11-5.0sec)@92-100kV
20mA(0.01-0.1sec),14mA(0.11-5.0sec)@102-120kV
Timer
0.01-5.00sec
Memory storage
5 presets
Laser pointer
Dual laser

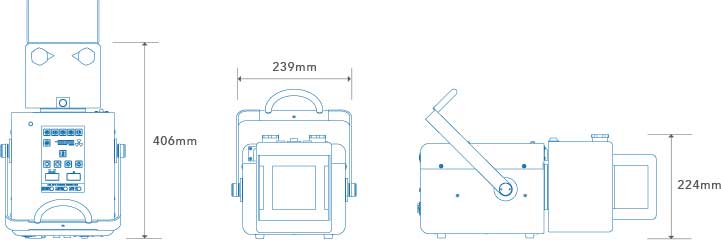

Size・Weight
L406×W239×H224mm(without skinguard) 20kg
Accessories
Power cord/Hand-held exposure switch and cord
Remarks
FDA approval(U.S.)

Page Top

●Please contact us for details.
