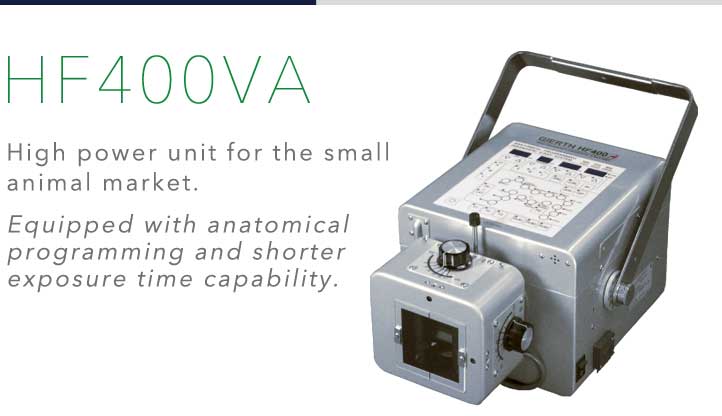

HF400VA

High power unit for the small animal market. Equipped with anatomical programming and shorter exposure time capability.

The HF400VA is the high spec model of the HF200A+ and has a high output with maximum 100mA and maximum 120kV. It is easy to operate with over 1200 anatomical programmed values for dogs, cats, birds and small animals. The program settings include; body part thickness, body part density, FFD range, pregnancy, and radiography with or without an X-ray grid. All settings can be adjusted manually. Programs can be adapted to all major types of film speed.

Page Top

Model
HF400VA portable x-ray unit
Max.output power
6.0kW
Line voltage
AC, single phase, 230V, 50/60Hz
Focal spot
1.2mm × 1.2mm
kV range
30kV-120kV (2kV step)
mA range
100mA(0.01-0.1sec),70mA(0.11-2.0sec)@40-50kV
80mA(0.01-0.1sec),56mA(0.11-2.0sec)@52-60kV
70mA(0.01-0.1sec),49mA(0.11-2.0sec)@62-80kV
60mA(0.01-0.1sec),42mA(0.11-2.0sec)@82-100kV
40mA(0.01-0.1sec),28mA(0.11-2.0sec)@102-120kV
60mA(0.01-0.1sec),42mA(0.11-2.0sec)@30-38kV
Timer
0.01-2.00sec
Memory storage
Anatomical program
Laser pointer
Dual laser(Optional)

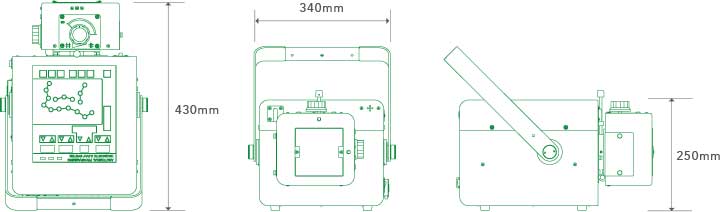

Size・Weight
L430×W340×H250mm 21.8kg
Accessories
Power cord/Hand-held exposure switch and cord

Page Top

●Please contact us for details.
