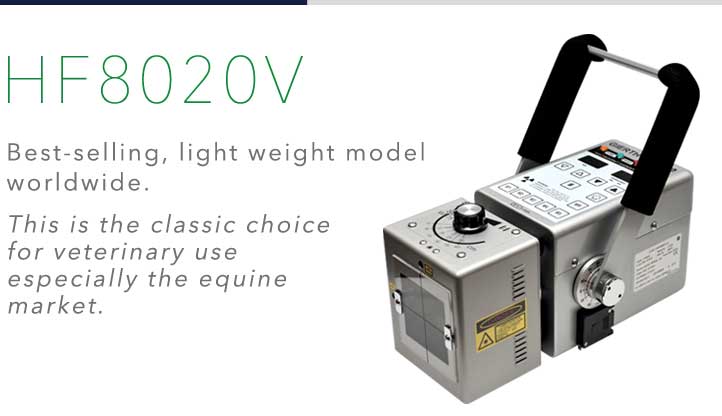

HF8020V

Best-selling, light weight model worldwide. This is the classic choice for veterinary use especially the equine market.

The HF8020V is the most recently upgraded model of the HF8015 series. This ultra lightweight unit is capable of the maximum 20mA at 80kV. The focal spot size of only 0.8 mm ensures high quality X-ray imaging. The unit has 5 memory stations for storing x-ray exposure techniques.It is compatible with all major DR digital systems. A dual laser pointer in the collimator centers to align your SID. The compact size makes it easy to transport and it is suitable for the equine and small animal markets.

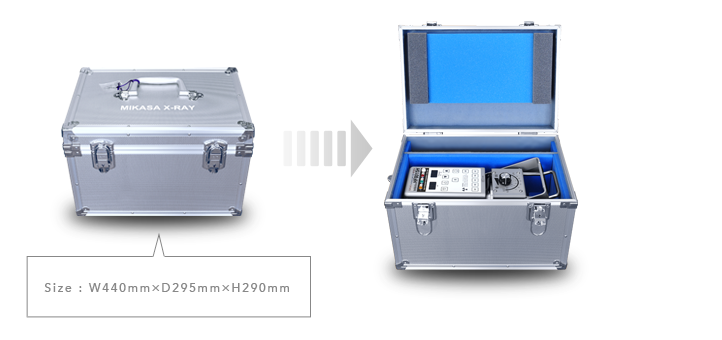

●Carrying case

A hard carrying case is available for safe and easy transportation.
Size:W440mm×D295mm×H290mm

Page Top

Model
HF8020V portable x-ray unit
Max.output power
1.6kW
Line voltage
AC, single phase, 230V, 50/60Hz
Focal spot
0.8mm × 0.8mm
kV range
50kV-80kV (2kV step)
mA range
20mA(0.02-0.1sec),16mA(0.11-2.0sec)@50-80kV
Timer
0.02-2.00sec
Memory storage
5 presets
Laser pointer
Dual laser

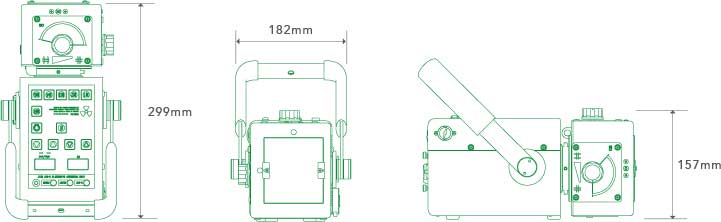

Size・Weight
L299×W182×H157mm 6.85kg
Accessories
Power cord/Hand-held exposure switch and cord

Page Top

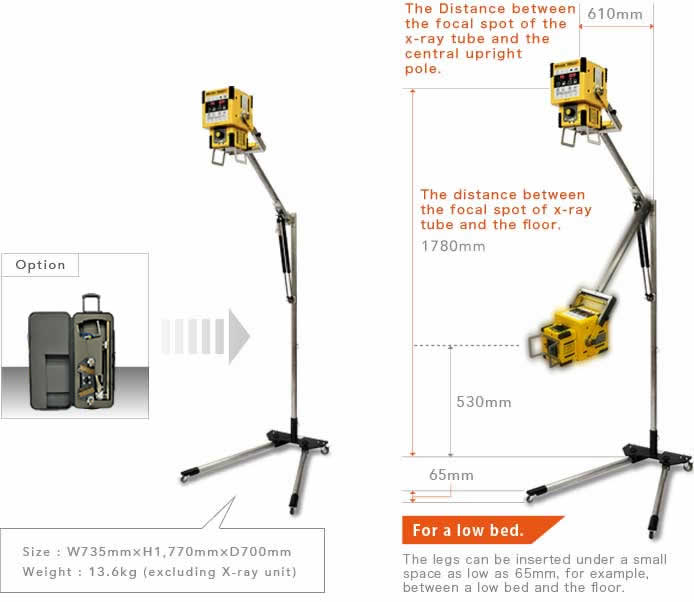

● MS-Ⅲ for TRB9020H/V,HF8015H,HF8020V

The MS-Ⅲ is a mobile x-ray stand that is easy to dismantle for maximum portability.

This is a lightweight and compact stand. A gas spring balance system facilitates easy and smooth vertical movement. It is easy to assemble and store. A carrying case is available for easy transportation.

Page Top

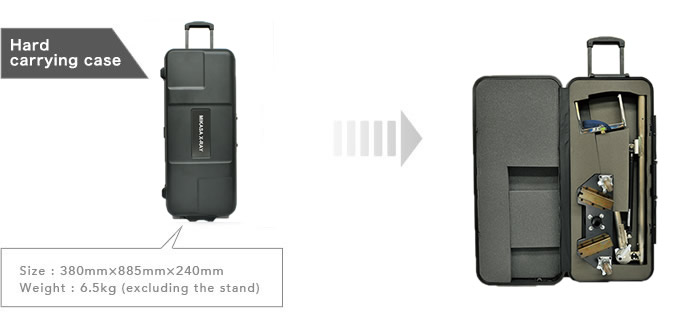

● Carrying cases for MS-Ⅲ

A choice of soft or hard carrying cases are available. These cases provide safe, compact storage of the disassembled parts of MS-Ⅲ x-ray stand enables easy transportation. They are both mounted on casters.
