MDD-certified, high-output, high-durability medical unit
An upgraded model of HF120/60H
Features
High-output, high-durability medical unit
HF1202H is equipped with a "High Burst" electronic function and supports up to 120kVDC. Input voltage is 120V to 240V (50/60Hz). Despite its lightweight, compact design, it delivers top-class output among models compatible with 120V power. It works flexibly with various imaging systems in mobile environments and provides an optimal diagnostic setup. Ideal for hospitals, off-site radiographic examinations including mobile clinics, and care facilities.
Specifications
| Product Name | Portable X-ray MIKASA HF1202H |
|---|---|
| Output / Power | 4.05kW |
| Line Voltage | AC, single-phase AC 120-240V, 50/60Hz |
| Nominal Focal Spot | 1.2 |
| Tube Voltage | 40kV-120kV (2kV step) |
| Tube Current | 60mA(0.02~0.05sec), 45mA(0.06~0.2sec), 33mA(0.25~5.0sec) @40-60kV 55mA(0.02~0.05sec), 41.3mA(0.06~0.2sec), 30.3mA(0.25~5.0sec) @62-70kV 50mA(0.02~0.05sec), 37.5mA(0.06~0.2sec), 27.5mA(0.25~5.0sec) @72-80kV 45mA(0.02~0.05sec), 33.8mA(0.06~0.2sec), 24.8mA(0.25~5.0sec) @82-90kV 40mA(0.02~0.05sec), 30mA(0.06~0.2sec), 22mA(0.25~5.0sec) @92-100kV 30mA(0.02~0.05sec), 22.5mA(0.06~0.2sec), 16.5mA(0.25~5.0sec) @102-110kV 25mA(0.02~0.05sec), 18.8mA(0.06~0.2sec), 13.8mA(0.25~5.0sec) @112-120kV |
| Timer | 0.02-5.00sec |
| Memory Storage | 10 presets |
| Laser Pointer | Dual laser |

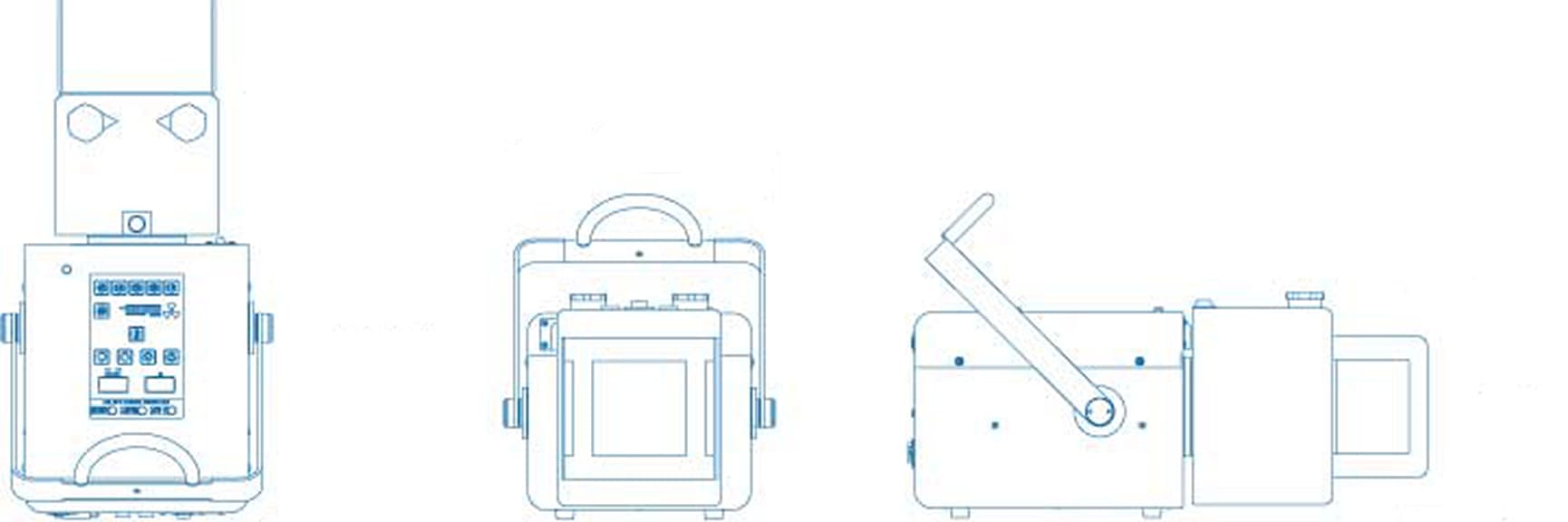

| Dimensions / Weight | L568 x W298 x H233 mm (excluding skin guard), 19.5 kg |
| Included Accessories | Power cord / Handheld exposure switch and cable |
