High-power, rugged medical unit
Features
High-output medical unit for heavy-duty use
Compatible with major DR digital systems. Ideal for use in hospitals, mobile clinics, and care facilities.
Specifications

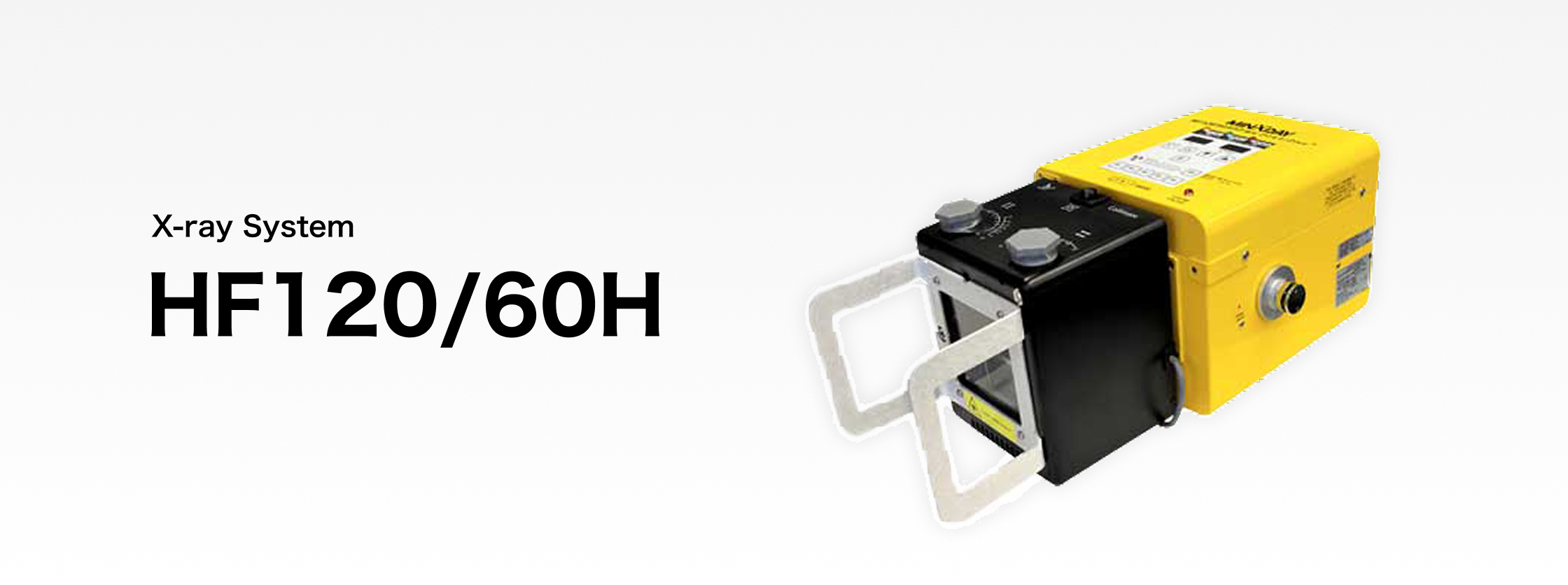

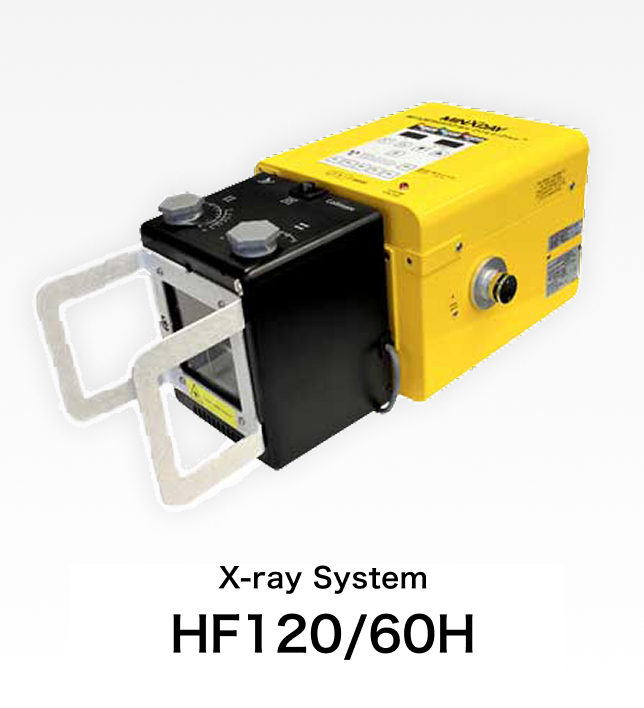

| Product Name | Portable X-ray MIKASA HF120/60H |
|---|---|
| Output / Power | 3.0kW |
| Line Voltage | AC, single-phase AC 120-240V, 50/60Hz |
| Nominal Focal Spot | 1.2 |
| Tube Voltage | 40kV-120kV (2kV step) |
| Tube Current | 60mA(0.01-0.1sec),42mA(0.11-5.0sec)@40-50kV 50mA(0.01-0.1sec),35mA(0.11-5.0sec)@52-60kV 45mA(0.01-0.1sec),31.5mA(0.11-5.0sec)@62-70kV 38mA(0.01-0.1sec),26.6mA(0.11-5.0sec)@72-80kV 33mA(0.01-0.1sec),23.1mA(0.11-5.0sec)@82-90kV 30mA(0.01-0.1sec),21mA(0.11-5.0sec)@92-100kV 20mA(0.01-0.1sec),14mA(0.11-5.0sec)@102-120kV |
| Timer | 0.01-5.00sec |
| Memory Storage | 5 presets |
| Laser Pointer | Dual laser |

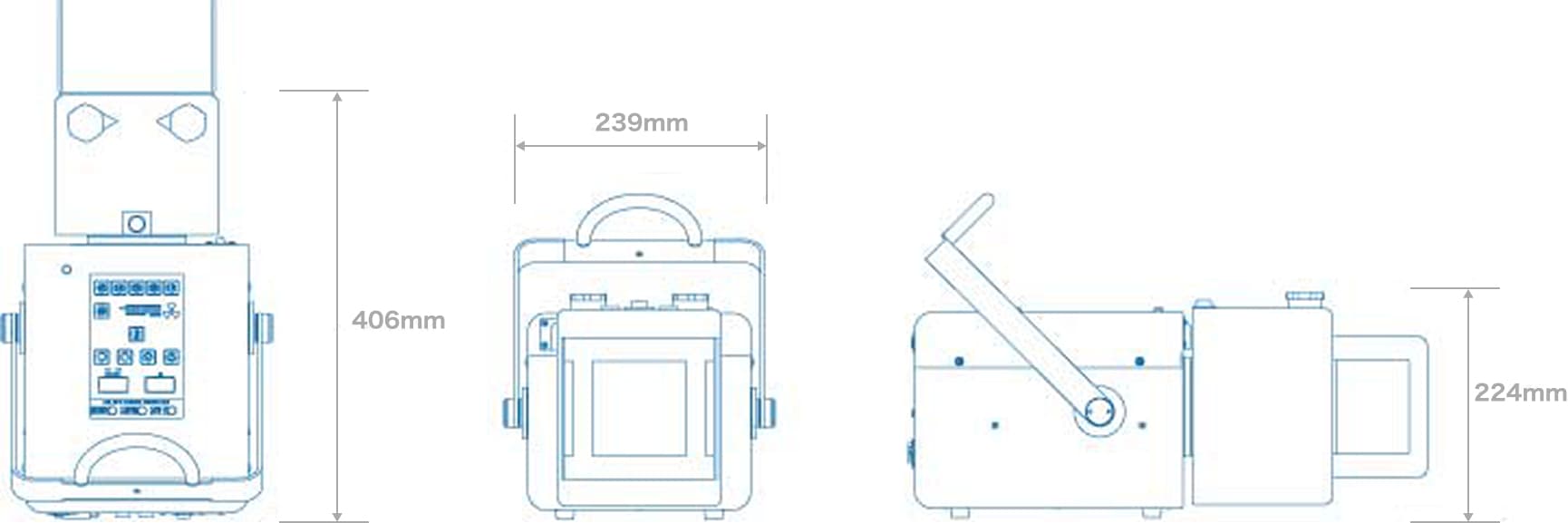

| Dimensions / Weight | L406 x W239 x H224 mm (excluding skin guard), 20 kg |
| Included Accessories | Power cord / Handheld exposure switch and cable |
| Remarks | FDA approval(U.S.) |
