High-performance, lightweight, and durable portable X-ray system
A best-selling model for veterinary and equine medicine
Features

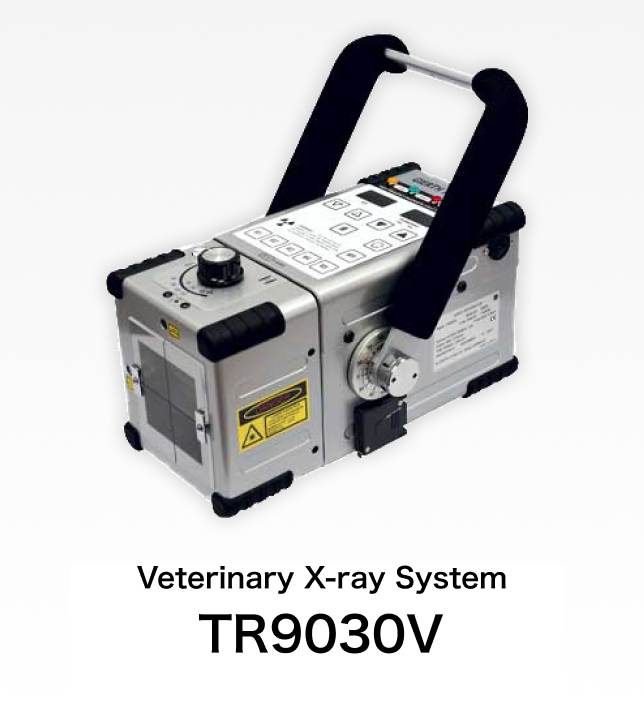

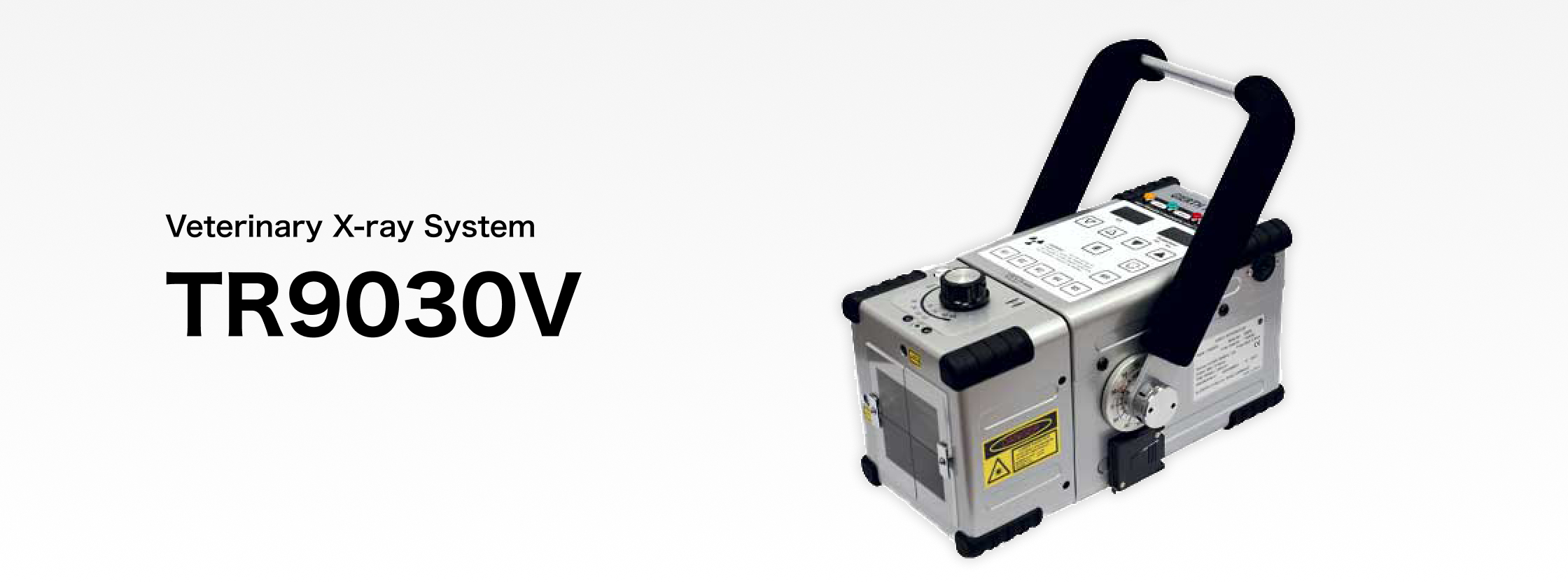

Portable X-ray unit
TR9030V is a compact and lightweight unit (6.4 kg including battery).
Excellent image diagnostics for veterinary examinations
Designed for equine veterinary examinations, enabling accurate diagnosis with high-definition diagnostic images.
X-ray image 001
X-ray image 002
X-ray image 003
X-ray image 004
Supporting equine diagnosis and treatment worldwide
Proven effective for racehorse limb diagnostics and in operating rooms at horse clinics.
Specifications
| Product Name | Portable X-ray MIKASA TR9030V |
|---|---|
| Output / Power | 1.8kW |
| Line Voltage | AC, single-phase AC, 230V, 50/60Hz |
| Nominal Focal Spot | 0.8 |
| Tube Voltage | 40kV-90kV (2kV step) |
| Tube Current | 30mA(0.02-0.1sec),18mA(0.11-2.0sec)@40-60kV 25mA(0.02-0.1sec),15mA(0.11-2.0sec)@62-70kV 20mA(0.02-0.1sec),12mA(0.11-2.0sec)@72-80kV 15mA(0.02-0.1sec),9mA(0.11-2.0sec)@82-90kV |
| Timer | 0.02-2.00sec |
| Memory Storage | 5 presets |
| Laser Pointer | Dual laser |

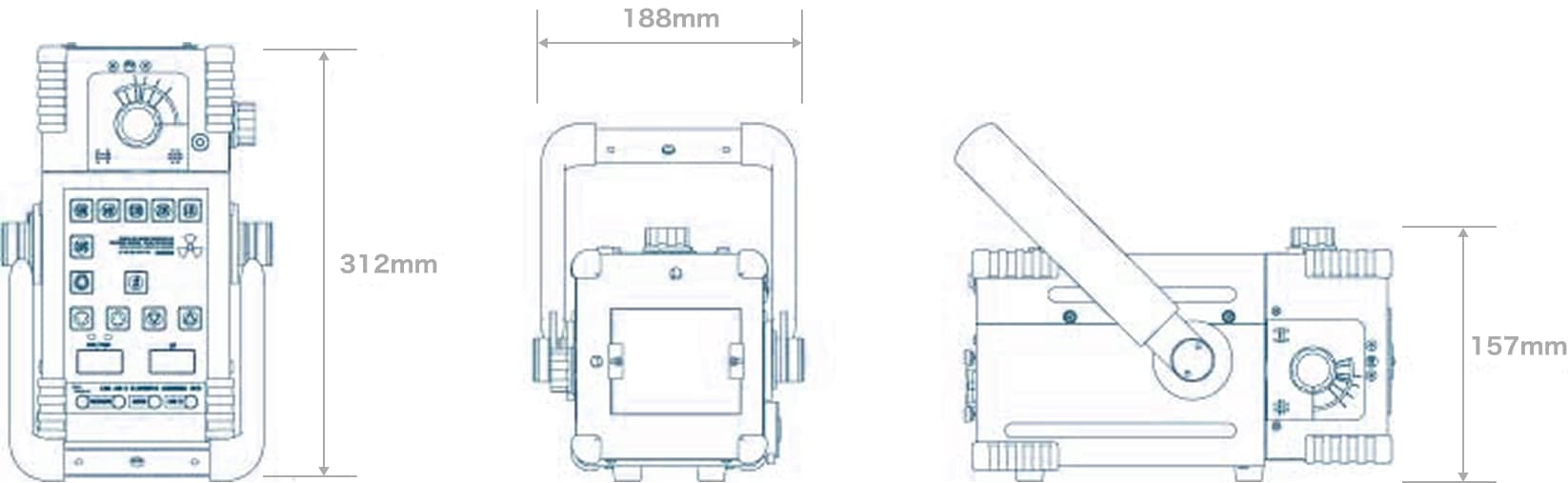

| Dimensions / Weight | L312×W188×H157mm 6.4kg |
| Included Accessories | Battery / Charger / Hand switch / Exposure switch and cable |
