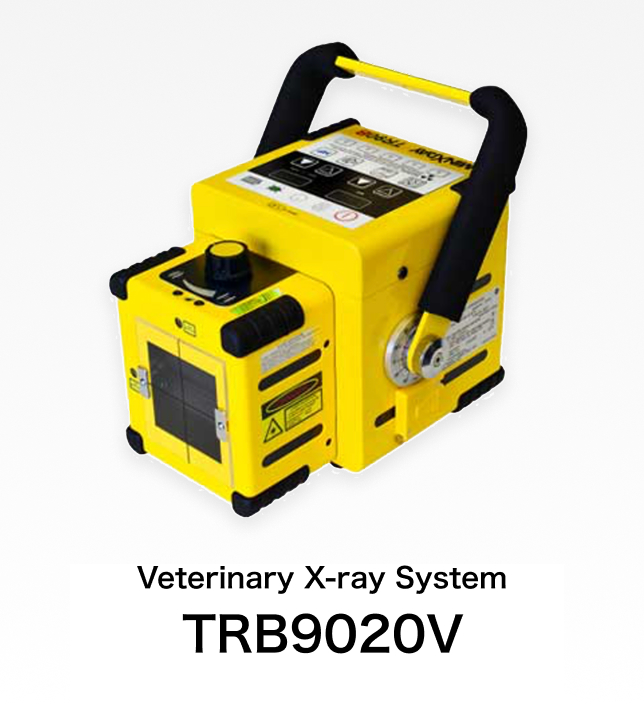

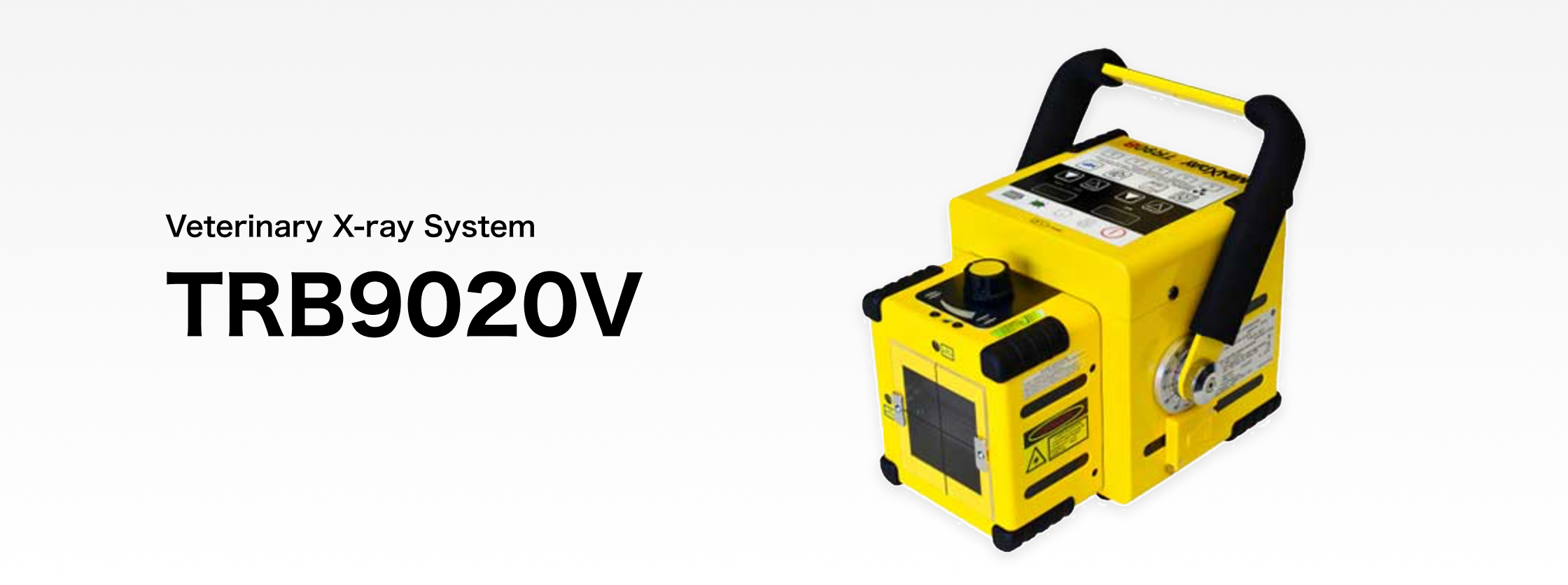

Battery-powered Portable X-ray System
A best-selling model for veterinary and equine medicine
Features

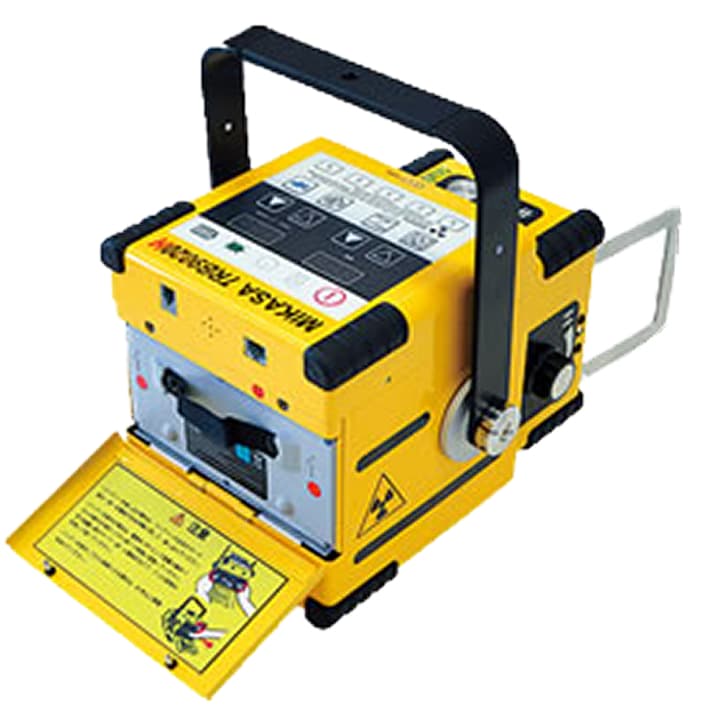

Compact body for efficient use of space
With a built-in battery, this unit weighs only 7.1 kg.

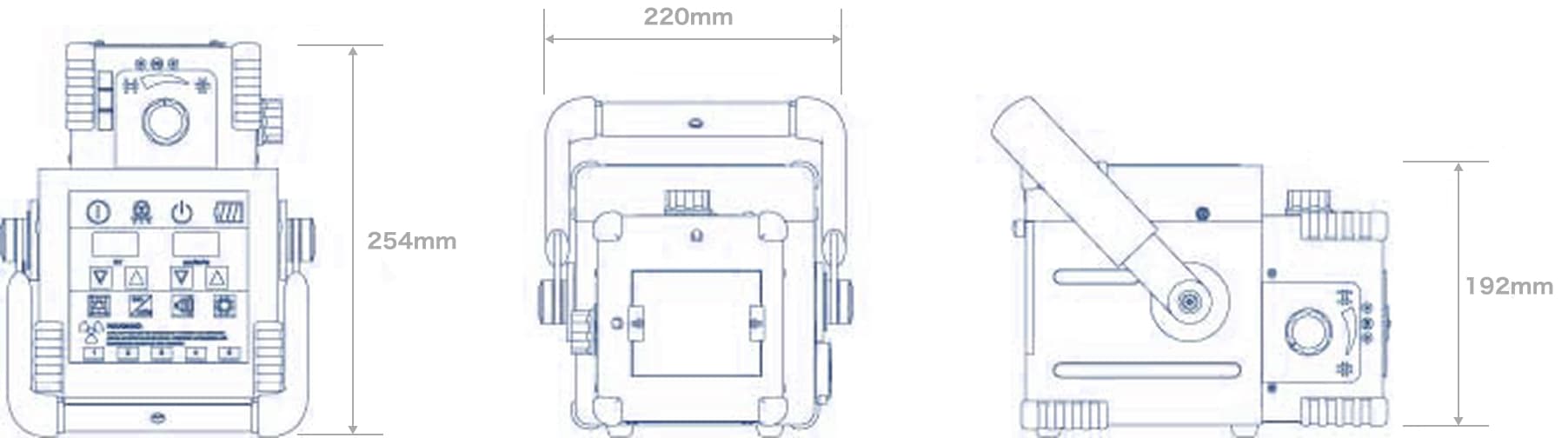

Its compact size of L340 x W220 x H192 mm enables X-ray imaging almost anywhere. It performs especially well in outdoor environments where power is hard to secure and in equine clinical settings.
Continuous imaging on a single charge
Powered by a dedicated cartridge-type battery, this unit can be used even where no external power source is available.
*The number of exposures varies depending on imaging conditions.
High-definition diagnostic imaging for veterinarians
Designed for equine examinations, it enables accurate diagnosis with high-definition images.
X-ray image 001
X-ray image 002
X-ray image 003
X-ray image 004

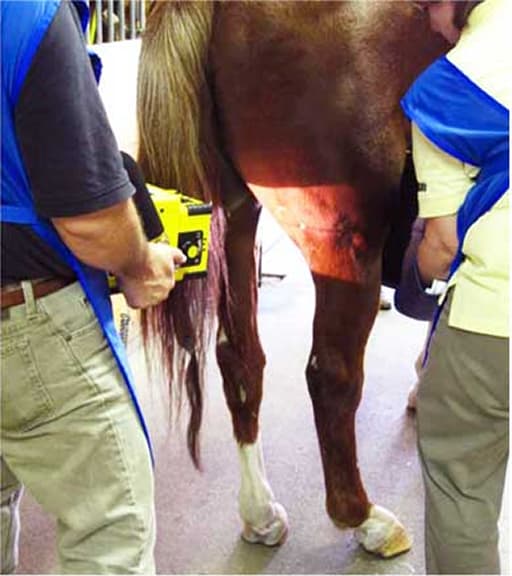

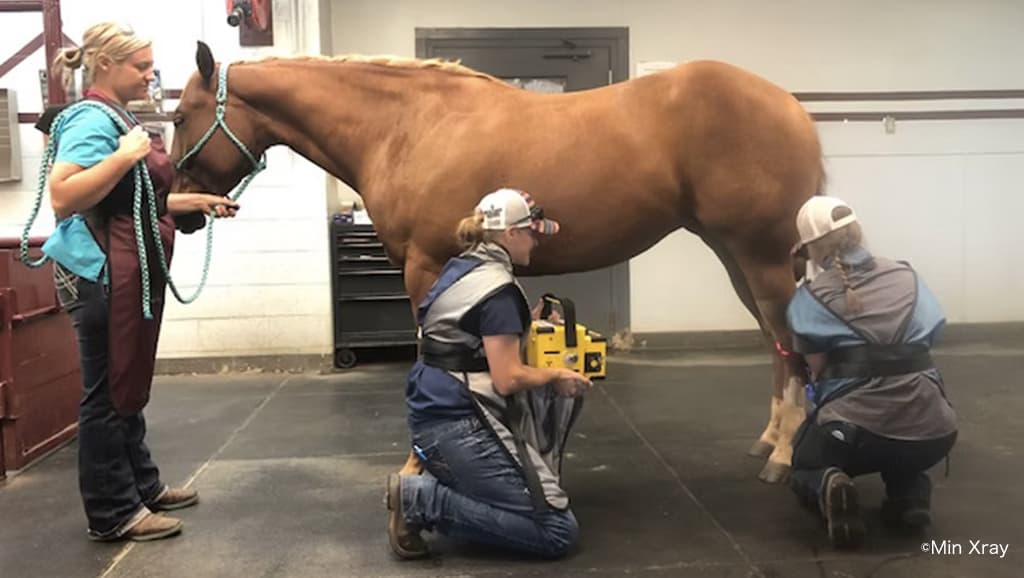

Supporting equine diagnosis and treatment worldwide

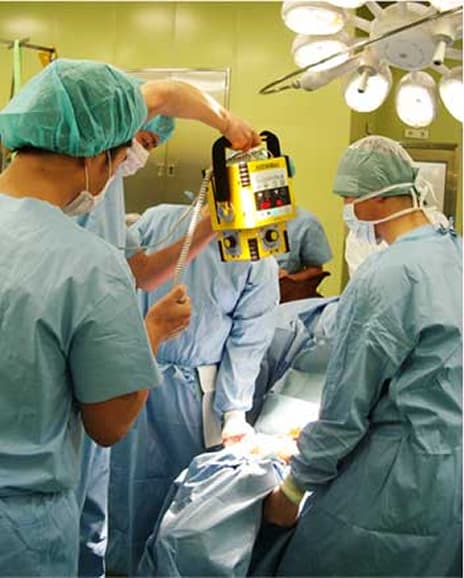

Proven effective for racehorse limb diagnostics and in operating rooms at horse clinics.
Specifications
| Product Name | Portable X-ray MIKASA TRB9020V |
|---|---|
| Output / Power | 1.35kW |
| Line Voltage | DC, 59.2V |
| Nominal Focal Spot | 0.8 |
| Tube Voltage | 40kV-90kV (2kV step) |
| Tube Current | 20mA@40-60kV, 15mA@62-80kV 10mA@82-90kV, High power mode:15mA@82-90kV |
| Timer | 0.01-1.00 sec, High power mode: 0.01-0.3 sec |
| Memory Storage | 5 presets |
| Laser Pointer | Dual laser |
| Dimensions / Weight | L254×W220×H192mm 7.1kg |
| Included Accessories | Battery / Charger / Hand switch / Exposure switch and cable |
