HF100H+

High power, multipurpose medical unit
Complies with U.S standards (FDA).

The HF100H+ is compact and lightweight enabling easy transportation.It is capable of taking exposures of most body parts using maximum 100 kV and maximum 40mA high frequency technology. The unit has 5 memory stations for storing x-ray exposure techniques. It is compatible with all major DR digital systems. It is recommended for hospitals, mobile clinics, military field clinics and nursing homes.

Page Top

Model
HF100H+ portable x-ray unit
Max.output power
2.0kW
Line voltage
AC, single phase, 115V or 230V, 50/60Hz
Focal spot
1.2mm × 1.2mm
kV range
40kV-100kV (2kV step)
mA range
30mA@40-60kV, 25mA@62-80kV
20mA@82-100kV
Timer
0.03-4.00sec
Memory storage
5 presets
Laser pointer
Dual laser
Size・Weight

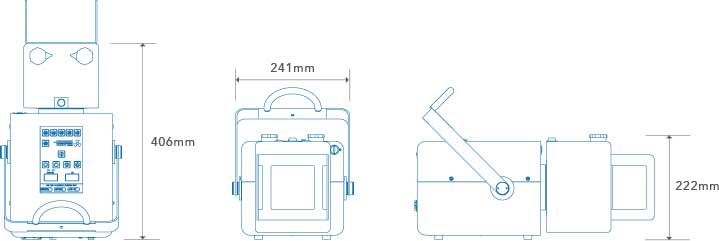

L406×W241×H222mm(without skinguard) 20kg
Accessories
Power cord/Hand-held exposure switch and cord
Remarks
FDA approval(U.S.)

●This product is available through our US agents.

●Please contact us for details.
