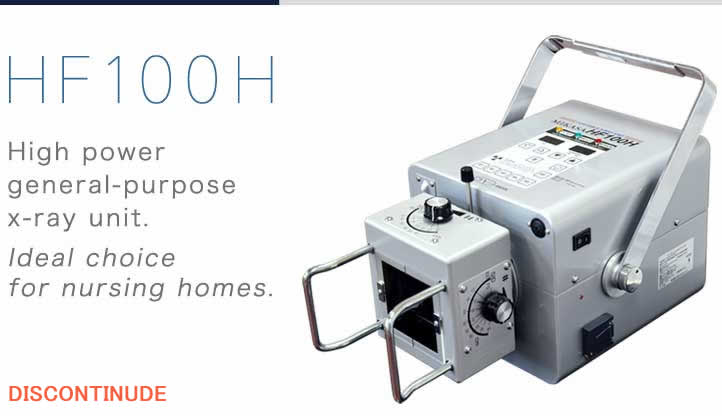

HF100H

High power general-purpose x-ray unit. Ideal choice for nursing homes.

The HF100H is compact and lightweight enabling easy transportation. It is capable of taking exposures of most body parts using maximum 100 kV and maximum 40mA high frequency technology. The unit has 5 memory stations for storing x-ray exposure techniques. It is compatible with all major DR digital systems. It is recommended for hospitals, mobile clinics, military field clinics and nursing homes.

●Carrying case

A hard carrying case is available for safe and easy transportation.

Page Top

Model: HF100H portable x-ray unit

Max.output power: 2.0kW

Line voltage: AC, single phase, 230V, 50/60Hz

Focal spot: 1.2mm × 1.2mm

kV range: 40kV-100kV (2kV step)

mA range: 40mA@40-44kV, 30mA@46-60kV
25mA@62-80kV, 20mA@82-100kV

Timer: 0.02-8.00sec

Memory storage: 5 presets

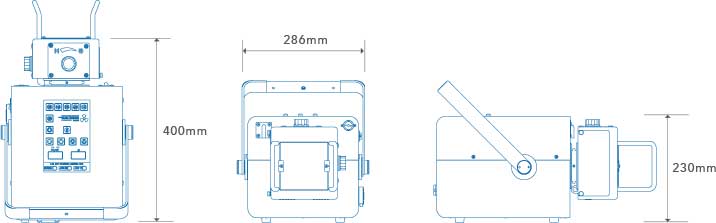

Size・Weight: L400×W286×H230mm(without skinguard) 17kg

Accessories: Power cord/Hand-held exposure switch and cord

Remarks: The product complies with the Japanese
Pharmaceutical Affairs Law.

Page Top

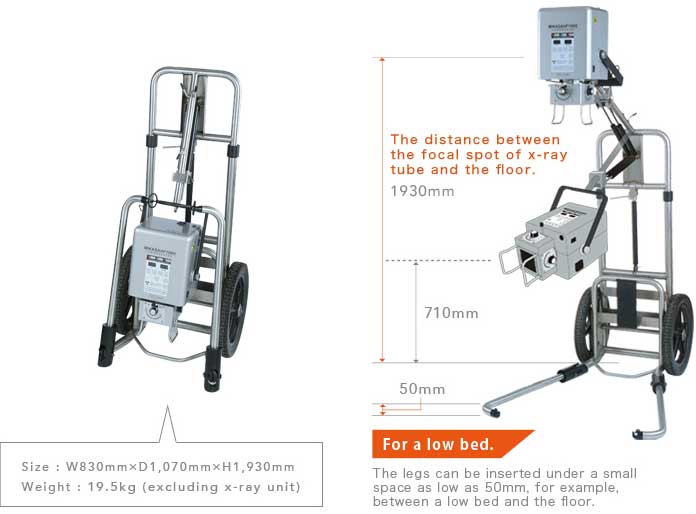

●MKIV

The MKIV is a collapsible mobile x-ray for quick maneuverability.

This is a lightweight stand. A gas spring balance system enables easy and smooth vertical movement. With the x-ray unit attached it is collapsible and the space-saving design makes it easy to store. Te large wheels enable smooth maneuverability even up and down steps and the compact design makes it easy to transport invehicles.
It is recommended for in-hospital use, home medical care, nursing homes, health examinations etc.
