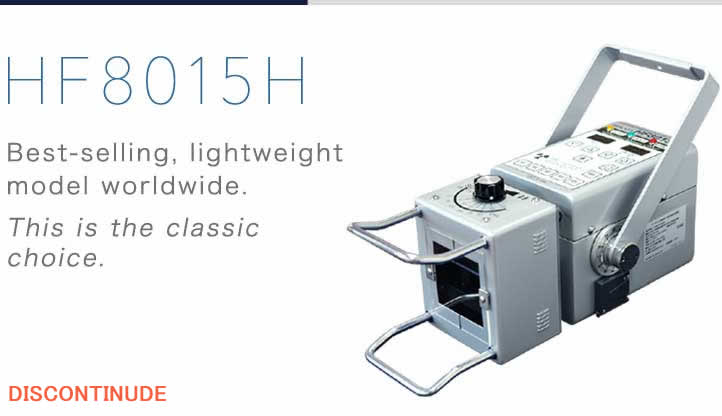

HF8015H
Best-selling, lightweight model worldwide. This is the classic choice.
The HF8015H is a compact and ultra-lightweight unit (only 6.8 kg). The small focal spot size of only 0.8 mm ensures high quality x-ray imaging. This unit has 5 memory stations for storing x-ray exposure techniques. It is compatible with all major DR digital systems. It is suitable for hospital use and home medical care.
![](../../common/img/medical/HF8015H_size.jpg)
●Carrying case
A hard carrying case is available for safe and easy transportation.Size:W440mm×D295mm×H290mm
![](../../common/img/veterinary/HF8020V_features_2.jpg)
![](../../common/img/bar/bar_spec_1.png)
- Model
- HF8015H portable x-ray unit
- Max.output power
- 1.2kW
- Line voltage
- AC, single phase, 230V, 50/60Hz
- Focal spot
- 0.8mm × 0.8mm
- kV range
- 50kV-80kV (2kV step)
- mA range
- 15mA constant
- Timer
- 0.01-2.00sec
- Memory storage
- 5 presets

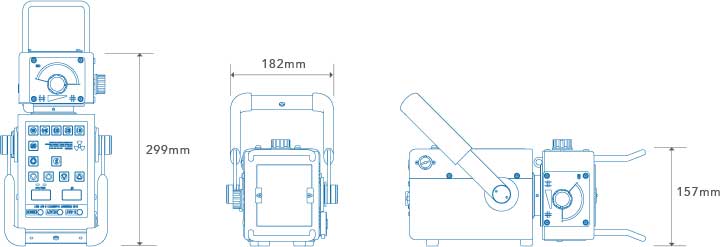

- Size・Weight
- L299×W182×H157mm(without skinguard) 6.85kg
- Accessories
- Power cord/Hand-held exposure switch and cord
- Remarks
- The product complies with the Japanese Pharmaceutical Affairs Law.
![](../../common/img/bar/bar_stand_1.png)
● MS-Ⅲ for TRB9020H/V,HF8015H,HF8020V
The MS-Ⅲ is a mobile x-ray stand that is easy to dismantle for maximum portability.
This is a lightweight and compact stand. A gas spring balance system facilitates easy and smooth vertical movement. It is easy to assemble and store. A carrying case is available for easy transportation.In addition to hospital use, this stand is suitable for disaster medical care, home medical care, mobile clinic vehicles, doctors' cars and ambulances.
![](../../common/img/medical/TRB9020H_stand_1.jpg)
● Carrying cases for MS-Ⅲ
A choice of soft or hard carrying cases are available. These cases provide safe, compact storage of the disassembled parts of MS-Ⅲ x-ray stand enables easy transportation. They are both mounted on casters.
![](../../common/img/medical/TRB9020H_stand_3.jpg)
