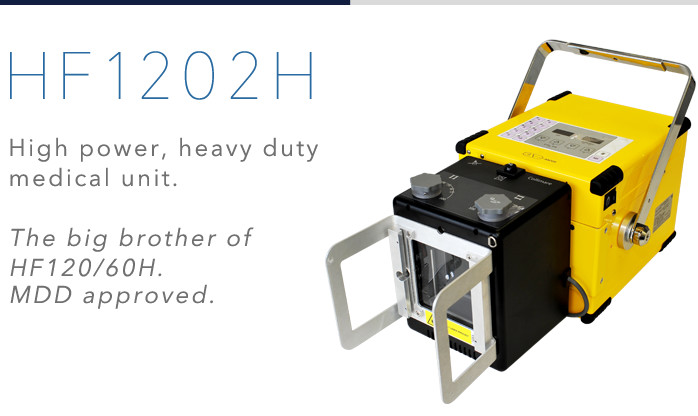

HF1202H
High power (4kW), heavy duty medical unit.
MDD approved.
The HF1202H complete with “High Burst” electronic function is capable of up to 120 kVDC.
The input line voltage is within the range of 120V-240V (50/60Hz). It is a higher powered version of HF120/60H, which has been used by the US military for many years. It is recommended for hospitals, off-site radiography including mobile clinics, military field clinics and nursing homes.
- Model
- HF1202H portable x-ray unit
- Max.output power
- 4.05kW
- Line voltage
- AC, single phase, 120-240V, 50/60Hz
- Focal spot
- 1.2
- kV range
- 40kV-120kV (2kV step)
- mA range
- 60mA(0.02~0.05sec), 45mA(0.06~0.2sec),
33mA(0.25~5.0sec)
@40-60kV
55mA(0.02~0.05sec), 41.3mA(0.06~0.2sec),
30.3mA(0.25~5.0sec)
@62-70kV
50mA(0.02~0.05sec), 37.5mA(0.06~0.2sec),
27.5mA(0.25~5.0sec)
@72-80kV
45mA(0.02~0.05sec), 33.8mA(0.06~0.2sec),
24.8mA(0.25~5.0sec)
@82-90kV
40mA(0.02~0.05sec), 30mA(0.06~0.2sec),
22mA(0.25~5.0sec)
@92-100kV
30mA(0.02~0.05sec), 22.5mA(0.06~0.2sec),
16.5mA(0.25~5.0sec)
@102-110kV
25mA(0.02~0.05sec), 18.8mA(0.06~0.2sec),
13.8mA(0.25~5.0sec)
@112-120kV
- Timer
- 0.02-5.00sec
- Memory storage
- 10 presets
- Laser pointer
- Dual laser

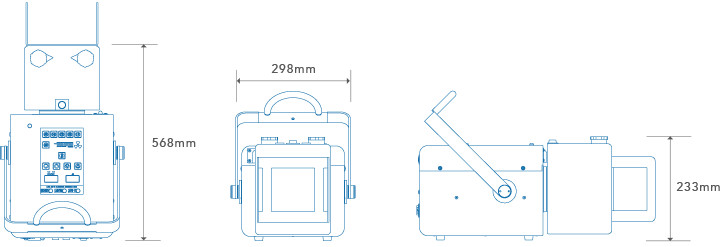

- Size・Weight
- L568×W298×H233mm(without skinguard) 19.5kg
- Accessories
- Power cord/Hand-held exposure switch and cord
